Chatreey AC1-Z

Chatreey AC1-Z

Brand: Other
Category: Mini PC
  • 1: Processor Model: J3455
  • 2: Hard Drive Capacity: 1TB
  • 3: Processor Main Frequency: 1.5
  • 4: Memory Capacity: 4GB
  • 5: Storage: 32/64GB EMMC

Our Rating

The overall rating is based on review by our experts

8.3
  • Design 9 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

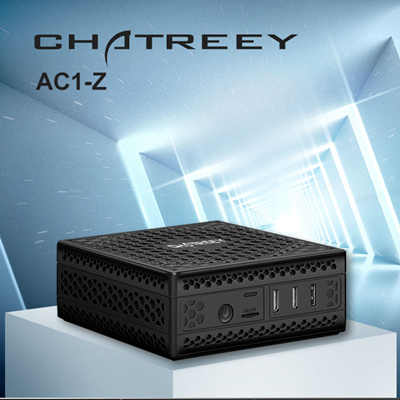

Chatreey AC1-Z is a new mini-PC based on Zotac Nano

A new passive mini-PC called Chatreey AC1-Z, which has an external design and most of its characteristics of the popular mini-PC ZOTAC Nano, is on sale at Aliexpress. There are versions with two different processors, 4 GB of RAM and several options for expanding internal storage.

The Chatreey AC1-Z mini-PC offers us two processor variants: the Intel Celeron J3455 Apollo Lake or the more modern Intel Celeron J4105 Gemini Lake chip. These are quad-core processors that differ in turbo speed and graphics processor, which in the first of them is the 5th generation and in the second 6th. We have 4 GB of DDR3 for Apollo and DDR4 for Gemini, while at the storage level we have 32 GB or 64 GB of eMMC, which we can expand by mounting an mSATA drive for the Apollo model and M.2 2242 for the Apollo model, as well as an internal bay for the 2.5″ drive. In the same store we have the option to order it with a 500GB HDD.

The Chatreey AC1-Z Mini-PC has built-in Wi-Fi 802.11 ac and Bluetooth 4.0 adapters. It features a microSD reader, 2 USB 3.0 ports, 2 USB 2.0 ports, 2 HDMI 1.4 ports, 3.5mm audio jacks and a Gigabit network connector. Activated Windows 10 operating system is installed. Supports VESA mount and external power adapter.

SPECS

Product Details

Features Type: Mini PC
Graphics Card Type: Integrated Card
Type: Pocket PC
Processor Model: J3455
Processor Brand: Intel
Hard Drive Capacity: 1TB
Memory Capacity: 4GB
Processor Main Frequency: 1.5
Brand Name: chatreey
Specification Model: AC1-Z
Dimension: 128mm(W) x52mm(H)x128mm(L)
CPU:Intel® Celeron® J3455/J4105 Processor
Graphics:Intel®HD Griphics
Memory:4GB DDR3
Storage:32/64GB EMMC, 1xSATA3 HDD/SSD
OS:win10/linux
LAN:Gigabit LAN
WLAN:WiFI 802.11ac+BT
Front I/O: USB3.0x2,USB2.0x1 MicroSD slot,Power button
SideI/O: HDMIx2,USB2.0 x1, RJ45x1, Audio-out/in x1, DC in Kensingtion lockx1.
Power: 12V 2.5A
