Eachine Cvatar

Eachine Cvatar

Brand: Eachine
Category: Drones
  • 1: Wheelbase: 142mm
  • 2: Type: 3 Inch Cinewhoop Frame
  • 3: Weight: 92.4g
  • 4: CPU: STM32F722 RET6
  • 5: Input Voltage: 2-6S Lipo

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 8 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

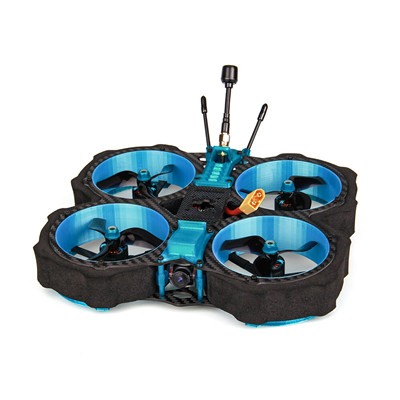

Eachine Cvatar 142mm 6S 3 Inch Cinewhoop Duct FPV Racing Drone

The manufacturer Eachine had remained confined to small Cinewhoop aircraft named Eachine Cvatar. It is now also launching larger Cinewhoop cameras capable of carrying an original GoPro camera. This is the promise of the Cvatar, a contraction of Cinewhoop and Avatar, in relation to the blue colour adopted by the camera. The look is not surprising, as it is the same as that of its countless competitors. It is based on a minimalist carbon structure with a diagonal of 14.2 cm on which the engines are fixed, from 1507 to 2400KV for 3-inch three-blade Gemfan propellers.

The flight controller at the heart of the aircraft is an F722 based on an F7 processor, coupled with a 35A 4-in-1 ESC. It is also equipped with an FPV RunCam Nano2 700TVL with a 2.1mm lens. The video transmitter is a Eachine TXC23 capable of transmitting in 25 mW (the maximum allowed in France), but also 200 mW, 600 mW and 800 mW! A Duct type fairing protects the propellers, with PLA parts. Eachine delivers a GoPro compatible mounting bracket (but no camera fairing).

The video part is in analog, but if you intend to equip yourself with DJI’s headphones for digital video feedback, know that the Cvatar comes with TPU parts to install an FPV Air Unit on board, as well as DJI’s camera, replacing the RunCam Nano2 and its 5.8 GHz VTX. Eachine also provides guides for the FPV Air Unit antennas.

The Eachine Cvatar is delivered without radio receiver, or with a FrSky R-XSR or XM+ receiver, or TBS Crossfire Nano RX. The weight, without receiver and battery, is 288.2 grams. There is no GoPro bracket included with the device. The power plug is an XT60. Eachine recommends 6S batteries for this model, which will be offered from $185.00 at Banggood. A 4S model will also be available, with 1507 to 3600KV motors.

SPECS

Product Details

Features Brand Name:Eachine
Item name: Cvatar 142 Cinewhoop FPV Racing Drone BNF/PNP
Net Weight:288.2g (Weight with receiver)
Specification Flight Controller

F722 Mini Flight Controller
MPU:MPU6000
CPU:STM32F722 RET6
Input Voltage:2-6S Lipo
Barometer: BMP280
Weight:3.7g

Camera

RunCam Nano2 FPV Camera
Image Sensor:1/3 700TVL CMOS
Lente:2.1mm
Input Power:DC 5V
Dimensions:14mm*14mm*16mm
Net weight:3.2g

Brushless Motor

1507 2400KV Brushless Motor
Motor:KV2400 (6S)
Input Voltage:3-6S
Recommended Prop(inch):3 Inch
Weight:15.9g
