EMAX HAWK 5 FPV Racing Drone

EMAX HAWK 5 FPV Racing Drone

Brand: EMAX
Category: Drones
  • 1: Propeller: Avan Flow 5 inches 3-blade
  • 2: Brushless motor: EMAX LS2206 2300KV motors
  • 3: Flying Time: 4~5mins
  • 4: Brushless ESC: EMAX bullet 30A 4 in 1 BLHeli - S DShot600
  • 5: Flight Controller Type: F4

Our Rating

The overall rating is based on review by our experts

8
  • Design 8 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

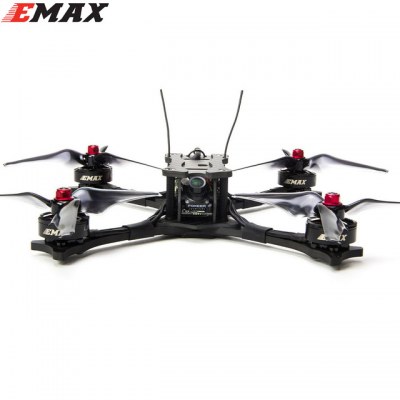

EMAX HAWK 5 FPV Racing Drone 600TVL Camera

With the success of the Babyhawk-R 2″ already declined in 3″ , Emax could only prepare the arrival of the dad hawk, the big Emax Baby hawk 5″! This is a mini-class 250 almost ready to fly, both for beginners frightened by the DIY as confirmed drivers who do not have time for the soldering iron.

emax hawk 5 magnum LS

Based on the chassis of the small hawks, the 5-inch version has detachable arms in pairs. Between the bottom plate and the top plate we find the stack Magnum F4 Tower. It consists of an Omnibus F4  flight controller with active OSD, ESCs 4 in 1 30Acompatible DShot600, a FrSky XM + receiver and a 5.8Ghz video transmitter switchable in 25/200mW with a dipole antenna, the all mounted in softmount .

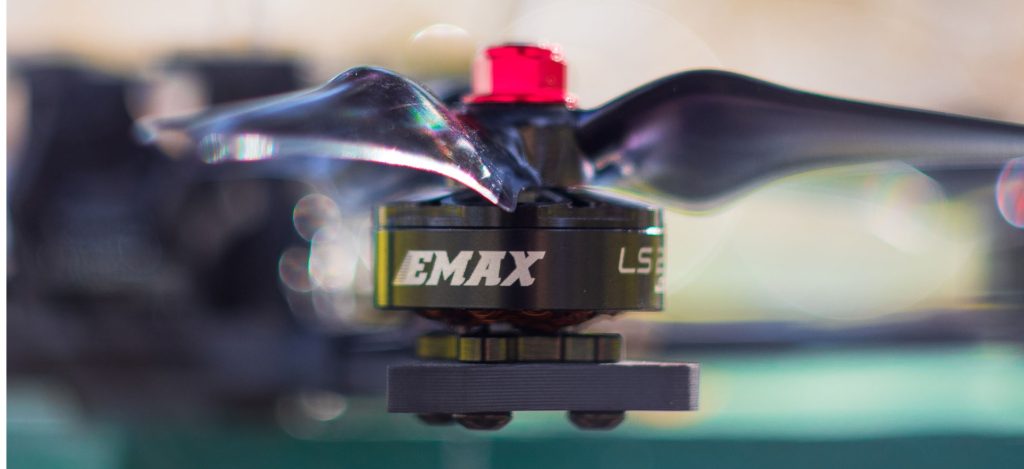

emax hawk 5 emax LS AVAN

The FPV camera is a Foxeer Arrow Micro  (displaying 600TVL for a 150° FOV ) and the engines of the Emax LS2206 2300KV. They are fitted with Avan Flow 5″ propellers designed to be smooth and efficient despite a step that seems enormous.

On the scale the Hawk 5″ weighs only 270g with the propellers!

It only remains for him to put a LiPo and binder to take off. It can be installed in 3 ways, under the bottom plate (mandatory with a GoPro) and on the flat top in the direction of the latter or perpendicular (as on the Remix ).

SPECS

Product Details

Features ●Low latency 600TVL 150FOV CCD micro camera for safe flight over all kinds of terrain
●OSD for monitoring easily the drone performance, battery information and signal quality
●Magnum power system + LS brushless motor for strong and efficient power supply
●AVAN Flow propellers for longer air staying time without sacrificing speed and performance
● With unique frame to accommodate a variety of placements
● Aerospace grade carbon fiber + lightweight aluminum alloy material
Specification Flight controller: EMAX Magnum F4 built in BetaFlight OSD
Brushless motor: EMAX LS2206 2300KV motors
Brushless ESC: EMAX bullet 30A 4 in 1 BLHeli - S DShot600
Receiver: Frsky XM+ 16CH SBUS Micro
VTX: 48CH 5.8G 25 / 200mW switchable power VTX board
Camera: Foxeer Arrow Micro V2 600TVL CCD camera
Propeller: Avan Flow 5 inches 3-blade
Battery: no ( recommend 70 - 100C 1300 - 1500mAh 4S )

Brand: EMAX
Type: Frame Kit
Version: BNF

Model: EMAX LS2206
Motor Type: Brushless Motor
KV: 2300

Flight Controller Type: F4

Camera Pixels: 600TVL
Sensor: CCD

Firmware: BLHeli-S
Functions: DShot600
Continuous Current: 4 x 30A

Flying Time: 4~5mins
Charging Time.: about 20mins

Product weight: 0.2700 kg
Package weight: 0.5990 kg
Product size (L x W x H): 19.50 x 17.95 x 4.05 cm / 7.68 x 7.07 x 1.59 inches
Package size (L x W x H): 25.50 x 24.80 x 5.50 cm / 10.04 x 9.76 x 2.17 inches
