GEPRC TinyGO

GEPRC TinyGO 1.6 inch 1S 4K Caddx Loris FPV Racing RC Drone

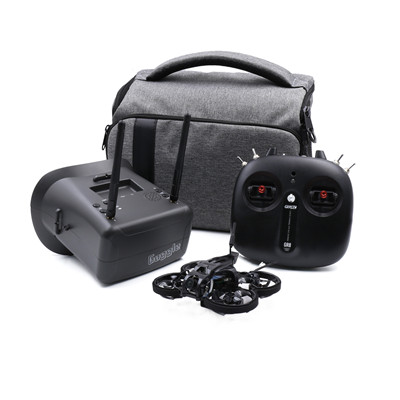

The TinyGO is a complete pack to get into immersion flights… It includes a Tinywhoop type nano racer with its propeller protections, a radio control and an immersion mask. The manufacturer has added 4 batteries, a charger and a bag for transport.

The heart of the pack is the TinyGO, a Tinywhoop brushless: it measures 7.9 cm diagonal from motor to motor and rests on a plastic structure including the propeller protections. The motors are GR1102 to 10000KV for 1.6 inch four-bladed Gemfan propellers (1636). The flight controller is a GEP-12A-F4: it is based on an F4 processor, flashed with Betaflight, with an active OSD. It includes an ESC 4 in 1 of 12A DShot600 and BLheli_S. The video transmitter is a 5.8 GHz analog model capable of transmitting at 25 mW and 200 mW.

One is equipped with the RunCam Nano2 camera for simple immersion flights, the other with a Caddx Loris hybrid camera, capable of providing video feedback for the FPV, but also of recording 4K video at 60 fps. The batteries are LiHV 1S 4.35V 530 mAh 80C LiHV with a PST PH2.0 connector. The TinyGO is designed to accommodate 2 batteries simultaneously to obtain a 2S power supply. GePRC promises an autonomy of up to 6 minutes. In the case is a USB charger capable of accommodating 4 batteries simultaneously.

The remote control is the GR8, a 2.4 GHz model with 4 switches, available in mode 2 and mode 1, for which GePRC indicates a range of 300 meters. It is to be powered with 4 AA batteries. The mask is the RG1, an entry-level display with a 4.3 inch screen that displays 800 x 480 pixels, powered by an integrated 1S 2000 mAh battery for a 2.5 hour autonomy. It has a DVR: a recorder of the video return on a microSD memory card to keep a memory of your flights!
