KINGKONG/ LDARC AK123

KINGKONG/ LDARC AK123

Brand: Other
Category: Drones
  • 1: Wheelbase: 122mm
  • 2: Propeller: 75mm Racer (1.5 hole)
  • 3: Motor: XT1103-6100KV (1.5mm shaft)
  • 4: Camera: Runcam Nano2
  • 5: FC: F411E12A (MATEKF411)

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

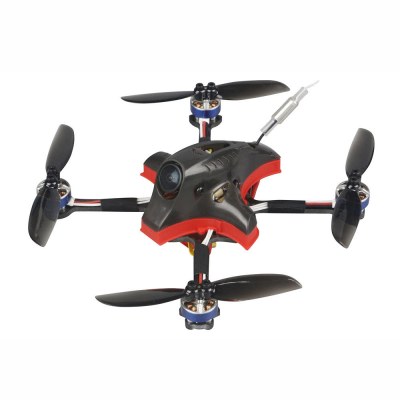

KINGKONG/LDARC AK123 122mm 3S 3 Inch Toothpick FPV Racing Drone

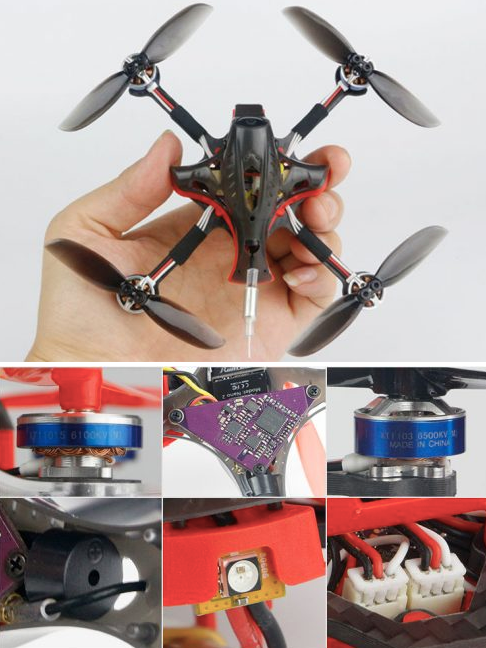

This nano racer is one of the devices with spartan equipment to weigh as little as possible. It is based on a carbon structure of 12.2 cm diagonal from motor to motor. At the heart of the device is a flight controller based on an F4 processor, flashed with Betaflight, with an active OSD, coupled with a 12A 4-in-1 ESC. The motors are 1103 to 6500KV brushless motors, for an axis of 1.5 mm, with 7.5 cm diameter two-bladed propellers.

The camera is a RunCam Nano2 700TVL that can be tilted between 18 and 40°. It is associated with a 48-channel 5.8 GHz video transmitter capable of transmitting at 0 mW (pitmode), 25 mW (the maximum allowed in France), 100 mW or 200 mW, compatible with the IRC Tramp protocol to control the settings from the remote control, and equipped with a dipole antenna. LDARC adds a LED and buzzer, useful to find the device in tall grass.

The plastic compartment under the device is designed to accommodate a 300 mAh 3S battery with an XT30 connector. The AK123 is delivered in a transparent plastic box. It is available in a version without a radio receiver, or with an AC2000 receiver compatible with Futaba, FrSky D16 EU-LBT and Non-EU. Weight ? 55 grams without battery and receiver, 81 grams in flight order… The price? It will be offered from $119.99 at Banggood.

SPECS

Product Details

Features Receiver: AC2000 DUAL-CORE TRI-MODE(S-FHSS, D16 non-E, D16 EU-LBT) ONLY BNF Version Included
Battery: 11.4V 300mAh 30C
Weight(without battery, receiver and bumper): 55g
Specification Brand name: LDARC
Item name: AK123 122mm 3S 3 Inch Toothpick FPV Racing Drone
Wheelbase: 122mm
Propeller: 75mm Racer (1.5 hole)
Motor: XT1103-6100KV (1.5mm shaft)
Camera: Runcam Nano2
FC: F411E12A (MATEKF411)
ESC: 4 IN 1 12A Blheli_S (G-H-30)
VTX: 0/25/100/200 48CH IRC Tramp
